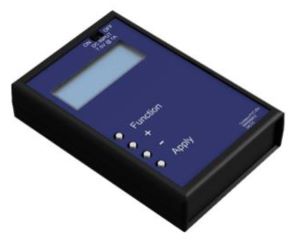

Part number MESH-SCHD Product Type Wireless Module from Manufacturer NVision Labs

Status: Standard | Data Sheet: pdf link image   | RoHS Compliance: Rohs Compliant

Description:
The Mesh Scheduler, MESH-SCHD, provides interval and intensity scheduling for the NVision ecosystem of Bluetooth® mesh lighting controllers, including all MESH-CTRL variants. All these devices are easily commissioned with either of the NVision Android or iOS mobile apps and do not require an Internet connection to set up or operate.

Combining the reliability of Bluetooth® mesh with integrated battery backup, the MESH-SCHD delivers a simple and robust mechanism for scheduling light fixtures to be at the correct intensity at the correct time for uninterrupted lighting control. Lighting schedules and device settings can be set directly through the button interface of the MESH-SCHD or through via a web browser on your Desktop, Tablet, or Smart Phone, using the integrated web server. Lighting schedules can have up to 24 intervals over a single day and intensities are set from 0% to 100% in 1% increments.

Operationally, each MESH-SCHD can be provisioned to the same network as the MESH-CTRL products and be used to control a group of MESH-CTRL lighting controllers. Each controller in the group is dimmed to, and maintained at, the desired % intensity from a Bluetooth® mesh command from the MESH-SCHD. For 0-10V drivers with dim-to-off capability, an intensity level of 0% turns the fixture off.

Features:

  • Robust control scheme with Bluetooth® mesh protocol
  • Easily configured and provisioned through NVision mobile applications
  • No Internet connection required to setup or operate
  • User-selectable intensity settings from 0-100% (1% increments)
  • Uninterrupted control after power outage or equipment relocation with internal battery backup
  • Built-in rapid charge battery charger (full charge in ~4hr)
  • Horticultural Lighting – easily integrated into commercial or home grow environments

Specifications:

  • Powered from 7.5 V AC/DC Power Adapter
  • Integrated battery backup (3x NiMH AAA)
  • Battery life: 24 hours
Part Number:
MESH-SCHD
Manufacturer:
NVision Labs
