Description

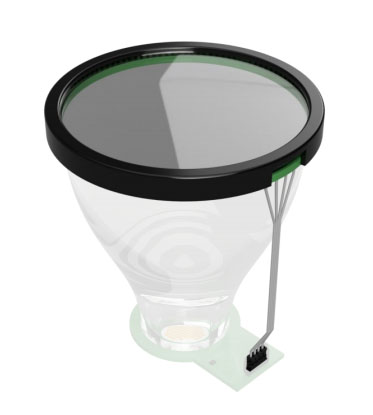

The LensVector lens is a liquid crystal, controllable lens that allows the beam from a luminaire to be dynamically shaped. It’s no longer necessary to change bulbs or reflectors to set a new scene or create drama and emotion. The LensVector lens is composed of two glass substrates separated by spacers and sealed to contain the liquid crystal material, essentially forming a liquid crystal sandwich. When an electric field is applied to the lens, the liquid crystal molecules change orientation and cause light passing through the lens to be refocused. By managing the electrical field and the orientation of the liquid crystal molecules, it is possible to shape the beam of light.
Benefits of Dynamic Beam Shaping
Light can be easily shaped electronically without changing the fixture or using ladders to replace lenses and diffusers. The technology can work with virtually any directional light source, and any control system and wired or wireless communications including: 0-10V, DALI, DMX, Bluetooth, etc. LensVector technology adds value and functionality for the manufacturer, the designer and, ultimately, end-users.
Control Module
The LensVector lens is control system agnostic. The control solution can be wired or wireless and can utilize any of the common protocols including Bluetooth, DALI, 0-10V etc. An android or IOS app, like those from Casambi and Xicato, can be used to adjust the beam size on-demand.
Note: A control module is needed to operate the LensVector lens.
In order to simplify and accelerate testing of the LensVector LV3 product Notwired.co has developed an analog control module. The NW-LV-0-10-A controller accepts 4 inputs and provides four output lines for the LV3 lens. Additional architectures allow the use of a single 100k POT or 0-10VDC source to daisy chain multiple lenses across multiple light engines. For multiple lens control, the NW-LV-0-10V-A controller has the drive capability to control up to 6 lenses.
Part Number:
LV-M2M-48002-P
|
Manufacturer:
LensVector, Inc
|
Export Status:
![]() |
Shipping in the U.S. and U.S. Territories
